Direct factory supply of sterile, single-use monopolar pencils, anti-adhesion ablation tips, harmonic scalpel units, and active smoke evacuation devices.
Why leading surgical centers, GPOs, and medical equipment distributors choose our electrosurgical pencils over legacy suppliers.
Equipped with an internal hexagonal anti-rotation locking mechanism that fixes the active electrode tip firmly in place, preventing rotational slip during micro-dissection or rapid coagulation.
Every pencil batch undergoes 100% inline high-voltage spark testing (up to 8,000V) to verify that the ABS outer housing and PVC cable insulation prevent high-frequency RF leakage burns.
Optional silicone and PTFE non-stick active blade tips significantly minimize carbon eschar adhesion, maintaining low electrical impedance and eliminating the need for intraoperative scraping.
Electrosurgery remains the foundational cornerstone of modern operating room procedures, providing rapid tissue cutting and precise hemostasis across general surgery, orthopedic, gynecological, thoracic, and neurosurgical disciplines. At the center of high-frequency electrosurgical therapy is the single-use electrosurgical pencil—an active accessory tasked with delivering controlled radiofrequency (RF) electrical current from the generator (ESU) directly to patient tissue. As operating room safety standards tighten globally under regulations such as EU MDR (2017/745) and US FDA guidelines, selecting a qualified electrosurgical pencil supplier requires an in-depth analysis of thermal physics, dielectric safety, ergonomic fatigue mitigation, and surgical plume capture efficiency.
Monopolar electrosurgery relies on a closed electrical circuit where high-frequency current (typically between 300 kHz and 3 MHz) travels from the electrosurgical generator through the active pencil cord, passes into the active electrode tip, concentrates at the target tissue site to generate intense localized heat, and exits through a wide-area dispersive patient return electrode (grounding pad). The electrosurgical pencil must maintain absolute signal fidelity without capacitive coupling or RF insulation breakdown.

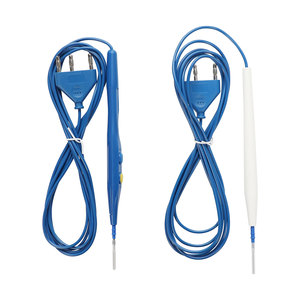

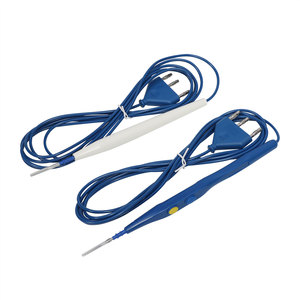

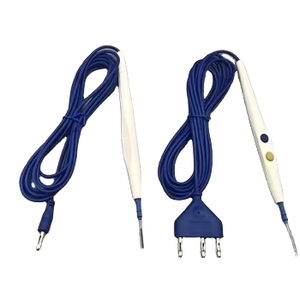

During the "Cut" mode, a continuous sinusoidal high-frequency waveform vaporizes intracellular fluid, creating a rapid thermal burst that severs tissue with minimal lateral thermal necrosis. In "Coagulation" mode, an interrupted, pulsed waveform with high peak voltages dehydrates cells, causing protein denaturation and vascular sealing. Our hand-control electrosurgical pencils feature gold-plated internal micro-switches calibrated for precise actuation forces (1.2N ± 0.2N), offering surgeons distinct tactile feedback while preventing inadvertent activation caused by fluid ingress or accidental grip pressure.
Procurement teams must evaluate active electrode tip materials based on surgical discipline, target tissue moisture, and procedure duration. Below is a structural comparative matrix highlighting performance attributes across major tip configurations:
| Tip Alloy / Coating Type | Eschar Resistance | Impedance Stability | Ideal Surgical Applications | Landed Cost Index |
|---|---|---|---|---|
| Stainless Steel (Standard AISI 304) | Moderate (Requires scraping) | High (Initial) / Drops with char | Short general surgical procedures, trauma, emergency care | Baseline (Cost-Effective) |
| PTFE Anti-Stick Nano-Coating | Exceptional (>90% reduction) | Constant throughout procedure | Oncology, plastic surgery, extensive abdominoplasty, open heart | Medium Premium |
| Tungsten Micro-Dissection Needle | High thermal resistance | Ultra-focused energy density | ENT, pediatric surgery, fine cosmetic dissection, neuro-spine | High Specialized |
| Telescoping Smoke Evacuation Shroud | Standard to PTFE option | Stable with active suction flow | Laparotomy, orthopedics, high-plume aerosolized tissue cutting | Integrated Safety Grade |
Surgical smoke plume produced during electrosurgical tissue ablation contains volatile organic compounds (VOCs), hazardous chemical toxins (such as benzene, formaldehyde, and hydrogen cyanide), cellular debris, and viable viral particles. International health organizations, including AORN (Association of periOperative Registered Nurses) and OSHA, increasingly mandate smoke capture in surgical suites worldwide.

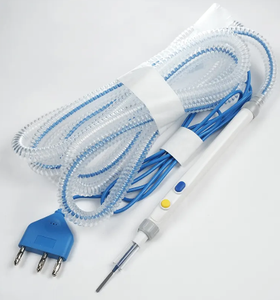

Our telescoping smoke evacuation electrosurgical pencil integrates a transparent capture shroud directly around the active electrode blade. By utilizing a lightweight, highly flexible 22mm/10mm vacuum line attached directly to standard room smoke evacuators, our pencils capture up to 99.9% of airborne particulates right at the incision point before they disperse into the operating room atmosphere. The adjustable telescoping mechanism allows surgeons to extend or retract the clear suction barrel by up to 100mm, ensuring unobstructed visibility during deep pelvic or thoracic surgical procedures.
Key market developments shaping global medical supply chains, quality compliance standards, and hospital purchasing strategies through 2030.
Global hospital procurement contracts increasingly mandate recyclable polymer components, reduced blister-pack foil thickness, and non-PVC bio-compatible cable jackets to lessen hazardous medical waste incineration loads.
Hospitals are consolidating vendor matrices. Preferred suppliers must offer universal 3-pin plugs, international 4mm shaft adapters, and molded strain relief designed to fit legacy and next-gen generators (ValleyLab, Erbe, Bovie, Olympus).
Strict implementation of Unique Device Identification (UDI) barcodes on primary pouch packaging ensures real-time electronic inventory management, lot tracking, and automated expiration monitoring in digital OR systems.
Combining 36+ years of vertical manufacturing integration, cleanroom precision, and global regulatory compliance to empower distributor networks worldwide.
Our state-of-the-art facility features controlled cleanroom environments for raw material extrusion, high-speed injection molding, assembly, and automated pouch sealing, keeping bioburden levels far below international limits.
We maintain fully updated technical documentation files, biocompatibility summaries (ISO 10993), stability testing data, and Certificates of Free Sale (CFS) to accelerate registration in Ministries of Health worldwide.
Eliminating micro-pinhole defects is essential for OR safety. Every monopolar pencil cord and housing is subjected to automated high-potential dielectric spark tests before entering the sterilization phase.
From custom cable lengths (3m, 4m, 5m), specialized tip shapes (ball, blade, needle, loop), and custom branding artwork to master carton container loading optimizations—we handle OEM partnerships seamlessly.
Detailed technical and operational answers to common inquiries from hospital purchasing managers, medical importers, and tender consultants.
Connect directly with our medical device export desk for complete product catalogs, free sample packs for clinical evaluation, and regulatory registration support dossiers.
