Directly engineered in Class 7/8 ISO cleanrooms under validated EO sterilization. Select a SKU below to access complete technical specifications and batch certification dossiers.

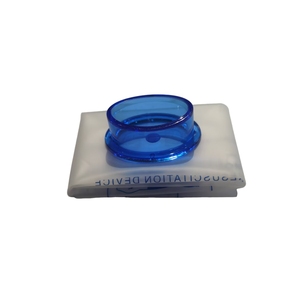

Compact rescue breathing mask featuring a one-way protection valve, oxygen inlet port, and ergonomic air-cushion seal for emergency resuscitation.

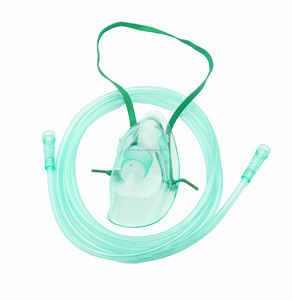

Standard medium-concentration facial oxygen mask with adjustable nose clip, elastic strap, and anti-crush 7-ft star-lumen oxygen tubing.

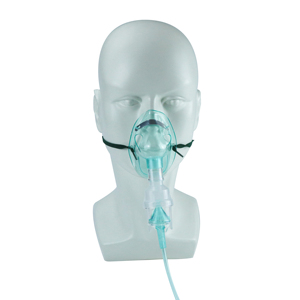

Integrated aerosol delivery mask equipped with a 6cc / 10cc medication chamber for fine particle mist atomization during bronchodilator treatment.

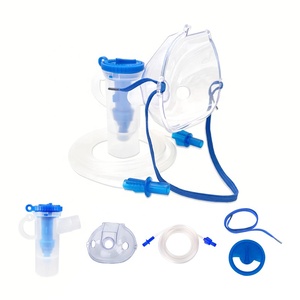

Hospital-grade high-efficiency nebulizer kit offering 360° tilt angle operation without fluid leakage for bedridden patient therapy.

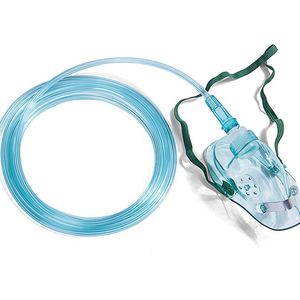

Comprehensive anatomical sized clinical oxygen mask range. Features feather-edged design to prevent pressure sores during extended therapy.
Precision-molded respiratory kit designed for maximum aerosol deposition in the lower respiratory tract with minimal medication waste.

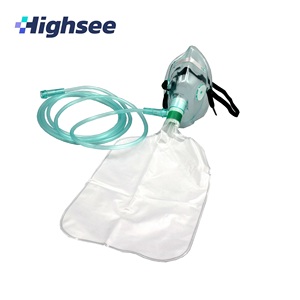

High-concentration oxygen delivery system equipped with a 1000ml reservoir bag and one-way safety valves to deliver up to 95% FiO2.

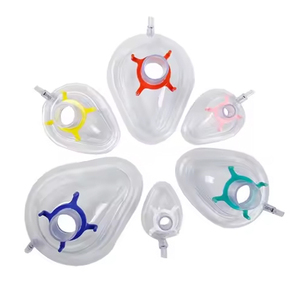

Transparent, high-clarity anesthesia mask with soft silicone or PVC diaphragm cushion for surgical air intake and veterinary anesthesia applications.
A comprehensive examination of manufacturing clusters, material innovation, regulatory friction points, and vendor evaluation metrics for B2B medical buyers.
The global medical marketplace requires an uncompromised balance between cost efficiency and regulatory strictness. As hospitals, emergency procurement networks, and government ministries adjust to post-pandemic stockpiling strategies, China’s medical plastics manufacturing industrial clusters—predominantly located across Zhejiang, Jiangsu, Guangdong, and Shandong provinces—have established unmatched vertical integration.
However, sourcing high-performance respiratory care devices like medical oxygen masks, Venturi delivery systems, nebulizer sets, and non-rebreather systems demands rigorous scrutiny beyond surface-level unit pricing. A factory’s compliance with international regulatory frameworks (EU MDR 2017/745, US FDA 510(k), US FDA Registration, ISO 13485:2016) dictates whether a shipment clears customs cleanly or faces costly detentions.
Modern clinical guidelines strictly limit volatile organic compounds (VOCs) and plasticizer migration in airway disposables. Leading factories utilize specialized compounds.
Contamination control during injection molding and automatic extrusion is essential to ensure low bioburden prior to final sterilization release.
Every single batch exported to Western or Middle Eastern healthcare systems must provide complete sterilisation release parameters.
Compare clinical parameters, FiO2 output metrics, flow rate requirements, and dead space factors across core oxygen mask product categories.
| Mask Category | FiO2 Delivery Range | Recommended Flow Rate | Dead Space Volume | Primary Clinical Indication | Critical Engineering Features |
|---|---|---|---|---|---|
| Simple Oxygen Mask | 35% - 55% | 5 - 10 L/min | 100 - 200 ml | Mild to moderate acute hypoxemia, general ward recovery | Exhalation side ports, adjustable metallic nose clip, star-lumen tubing |
| Nebulizer Mask Combo | 24% - 40% (with drug delivery) | 6 - 8 L/min | 120 - 220 ml | Asthma, COPD exacerbation, bronchodilator aerosol therapy | 6cc/10cc graduated anti-spill medication cup, MMAD < 5µm mist generation |
| Non-Rebreather Mask (NRB) | 80% - 95% | 10 - 15 L/min | Minimal (Directional Valves) | Severe carbon monoxide poisoning, traumatic shock, acute distress | 1000ml reservoir bag, dual rubber flap check valves, high concentration seal |
| Venturi Variable-Flow Mask | 24%, 28%, 31%, 35%, 40%, 50% | 2 - 15 L/min (Color dependent) | Controlled Flush | COPD patients requiring precise fraction of inspired oxygen (FiO2) | Color-coded calibrated diluters, entrainment port window, humidification cap |
| Pocket Resuscitation Mask | 16% (Breath) / up to 50% (+O2) | Manual / Supplemental | Compact Pocket Seal | First responder CPR, emergency pre-hospital resuscitation | One-way filter valve, air-filled soft cushion cuff, oxygen inlet valve |
Anticipating regulatory changes, material evolution, eco-conscious manufacturing, and smart hospital integration.
Environmental regulations, particularly within the EU (REACH and EU MDR Annex I requirements), are accelerating the phasing out of traditional Di(2-ethylhexyl)phthalate (DEHP) plasticizers in medical PVC devices. Leading Chinese suppliers are transitioning toward TOTM (Tris(2-ethylhexyl) trimellitate) and bio-based citrate plasticizers. Sourcing teams must prioritize vendors who offer certified DEHP-Free portfolios to avoid market access barriers in North America and Western Europe.
Extended oxygen administration during prolonged intensive care hospitalizations frequently causes facial stage-1 pressure injuries around the nasal bridge and cheekbones. Future procurement trends show a strong preference for dual-injection liquid silicone rubber (LSR) cushion edges or ultra-soft elastomeric TPE perimeter seals that distribute sealing pressure evenly while guaranteeing zero oxygen leakage around the eye orbit.
To reduce hospital-acquired viral transmission (nosocomial infection risk) during aerosolized therapy, advanced oxygen masks are integrating high-efficiency exhalation filter ports (PFE > 99.9%). Modern nebulizer masks also incorporate micro-pump mesh technologies that generate micro-droplets (MMAD 1.5 to 3.2 microns), resulting in significantly deeper pulmonary penetration in ICU environments.
Global health authorities are enforcing full lifetime device traceability. High-tier China oxygen mask manufacturers have integrated Direct Part Marking (DPM) and GS1-compliant Unique Device Identification (UDI) matrix codes onto primary packaging pouches and master shipping cartons, allowing hospital inventory systems to track lot numbers, sterilization dates, and expiration cycles instantly.
From custom artwork proofing and volumetric mold engineering to localized packaging design and regulatory technical documentation.
CAD review, material durometer selection, standard vs DEHP-free formulation.
Multi-cavity high precision steel mold building and pilot sampling.
Multilingual IFU design, pouch layout, carton barcode & UDI generation (5-7 days).
ISO Class 7/8 automated extrusion, assembly, and 100% leak testing.
Ethylene Oxide batch processing, aeration, biological clearance & export dispatch.
Leveraging 36+ years of specialized medical device engineering, vertical production control, and green eco-facility initiatives.
Unlike trading intermediaries or split-process assemblers, our facility manages raw polymer compounding, tube extrusion, injection molding, cleanroom assembly, pouch sealing, and sterilization release under one centralized Quality Management System. This eliminates inter-factory contamination risks and ensures strict dimensional consistency.
Aligned with modern corporate environmental responsibility (ESG) initiatives, our facility features rooftop solar power installations. This renewable energy integration significantly lowers the carbon footprint per manufactured unit while protecting global distribution partners from energy price volatility.
Essential guidance on quality compliance, sterilization parameters, export logistics, custom branding, and product registration dossiers.
Our manufacturing plant operates under a strict Quality Management System certified to ISO 13485:2016 and ISO 9001. Product lines maintain CE certifications under the EU Medical Device Regulation (EU MDR 2017/745) and US FDA listings. Every export consignment is accompanied by a batch-specific Certificate of Analysis (CoA), Sterilization Validation Release Certificate, and Lot Traceability Dossier.
All oxygen masks are 100% Latex-Free. Furthermore, we offer both standard medical-grade PVC and premium DEHP-Free / Phthalate-Free PVC options compliant with EU REACH standards and ISO 10993 biocompatibility testing (cytotoxicity, systemic toxicity, and skin irritation clearance).
Standard catalogue items under factory neutral packaging begin at 5,000 units per SKU. Custom OEM/private-label programs (incorporating branded polybags, customized outer cartons, and multilingual Instructions for Use) typically require a minimum order of 10,000 to 20,000 units. Standard production lead time is 3 to 4 weeks following artwork proof approval.
Disposables undergo validated Ethylene Oxide (EO) sterilization in accordance with ISO 11135 protocols. Sterility Assurance Level (SAL) is certified to 10-6. EO residue levels are aerated to well below ISO 10993-7 thresholds (<10 ppm). Sealed sterile pouches maintain a validated shelf life of 5 years from the date of manufacture.
Yes. Our regulatory affairs team provides comprehensive technical dossiers, including Free Sale Certificates (FSC), ISO 13485 certificates, CE Declarations of Conformity, biocompatibility test summaries, stability study reports, and legalised/apostilled documentation required by Ministries of Health across Southeast Asia, the Middle East, Africa, Latin America, and the CIS region.
Oxygen mask tubing is engineered with an internal 6-channel star-lumen cross-section design. This geometric design ensures that continuous gas delivery is maintained without interruption, even if the tubing becomes kinked, bent, or compressed under heavy medical equipment or patient position shifts.
Connect directly with our international export engineering desk to request complete technical spec sheets, factory audit reports, sample kits, or volume price quotations.
