Precision Disposable Spinal Needle (Quincke Bevel)
Engineered sharp micro-honed Quincke tip for effortless dural penetration, reduced trauma, and rapid CSF visual detection via crystalline hub.
Explore our engineered line of sterile single-use spinal needles, introducers, and specialized intravascular access disposables manufactured under rigorous ISO Class 7/8 cleanroom standards.
Engineered sharp micro-honed Quincke tip for effortless dural penetration, reduced trauma, and rapid CSF visual detection via crystalline hub.
Ultra-thin wall 304 stainless steel needle paired with flexible color-coded wings for stable vein fixation and smooth intravenous therapy.

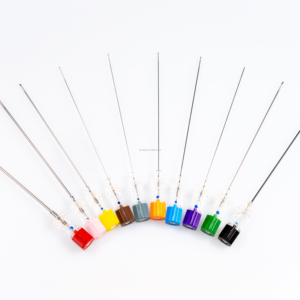

Smooth rounded pencil tip with precise side orifice placement to practically eliminate Post-Dural Puncture Headache (PDPH) risks.

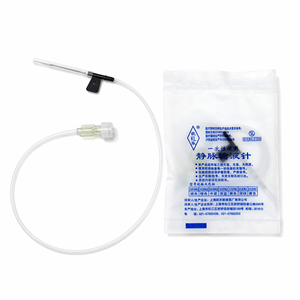

Ethylene Oxide (EO) sterilized high-grade intravenous infusion needles featuring kink-resistant PVC tubing and universal Luer lock fittings.

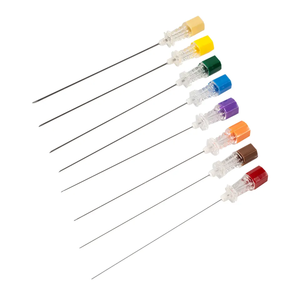

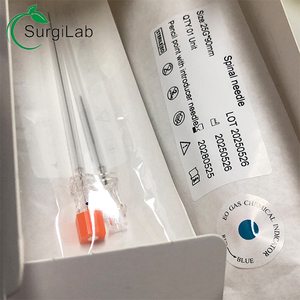

Co-axial procedural set combining fine-gauge atraumatic spinal needle with a matched guide introducer needle for maximum directional control.
Siliconized medical grade stainless steel cannula ensuring low friction force during vascular access and extended patient comfort.

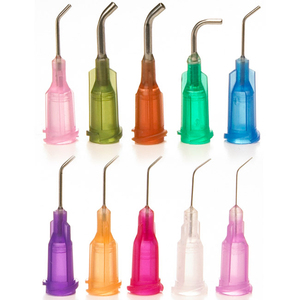

High-precision blunt dispensing and customized industrial/medical micro-tubing manufactured for strict dimensional repeatability.
Dual-gauge lumbar puncture set matching high mechanical rigidity introducers with fine atraumatic spinal cannulas for clinical efficiency.
In modern regional anesthesia and diagnostic lumbar puncture procedures, the spinal needle serves as a critical interface between clinical intent and patient safety. Over the past decade, hospital purchasing departments, healthcare ministers, and global medical device distributors have shifted their sourcing focus toward micro-precision engineering capable of mitigating systemic post-procedural complications—specifically Post-Dural Puncture Headache (PDPH), nerve root trauma, and cerebrospinal fluid (CSF) leakage.
As a premier China Wholesale Spinal Needle Manufacturer & Exporter, our manufacturing engineering team integrates state-of-the-art Japanese steel cannula drawing, micro-bevel precision grinding, and automated optical hub alignment. This comprehensive industrial whitepaper outlines the structural ergonomics, material science, and global procurement trends governing high-performance anesthesia disposables today.
Selecting the optimal needle tip architecture directly influences clinical outcomes and patient recovery speeds. Our cleanroom automated production lines fabricate both cutting and non-cutting tip geometries to cater to diverse clinical preferences across North America, Europe, LATAM, and the Middle East:
Cannula structural rigidity is paramount during lumbar puncture to prevent shaft bending or deflection when traversing tough ligamentum flavum tissue. We utilize high-tensile medical grade SUS304 / SUS316L stainless steel tubing manufactured with strict outer diameter (OD) and inner diameter (ID) wall thickness tolerances compliant with ISO 9626.
To reduce insertion drag and tissue resistance, each cannula undergoes a proprietary medical-grade silicone fluidization process. This micro-layer coating drops puncture friction forces to below 0.45 Newtons, granting clinician unmatched control and enhancing patient comfort during conscious sedations.
Every spinal needle hub produced in our facility is injection-molded using medical-grade clear polycarbonate (PC). The optical clarity of the hub provides an instant optical chamber where Cerebrospinal Fluid (CSF) flashback is identified within seconds of dural entry. Furthermore, internal hub geometry minimizes dead volume space to ensure exact dosing during spinal agent delivery.
Comprehensive gauge, length, color-coding (ISO 6009), and application cross-reference for bulk OEM and tender procurement.
| Gauge Size | Outer Diameter (mm) | ISO 6009 Hub Color | Standard Lengths | Needle Tip Options | Primary Clinical Application |
|---|---|---|---|---|---|
| 18G / 19G | 1.20mm - 1.10mm | Pink / Cream | 90mm / 120mm | Quincke / Tuohy | Epidural Catheter Placement & Deep Puncture |
| 20G / 21G | 0.90mm - 0.80mm | Yellow / Deep Green | 90mm / 100mm | Quincke Bevel | Diagnostic Lumbar Puncture & High-Viscosity Fluid |
| 22G | 0.70mm | Black | 90mm / 120mm | Quincke / Pencil Point | Standard Adult Spinal Anesthesia |
| 25G | 0.50mm | Orange | 90mm / 110mm | Pencil Point / Quincke | Low-PDPH Obstetric & Surgical Anesthesia |
| 26G / 27G | 0.45mm - 0.40mm | Brown / Medium Grey | 90mm / 120mm | Pencil Point + Introducer | Ultra-Fine Pediatric & Micro-Access Anesthesia |
Why hospital networks and global distributors select our factory for private label and tender manufacturing.
Our production facilities run fully automated injection moulding, assembly, and packaging lines inside validated ISO Class 7 and Class 8 cleanrooms. Each production batch undergoes strict bioburden monitoring, particulate testing, and physical tension testing prior to sterilisation release.
Each individual spinal needle is fitted with a custom-ground internal stylet. The stylet tip aligns flush with the needle bevel to prevent tissue coring during puncture. The hub features a mechanical lock key that guarantees precise tip angle orientation during clinical entry.
Sterilization is executed with 100% Ethylene Oxide (EO) gas in accordance with ISO 11135 standards. Residual EtO levels are guaranteed below 1.0 ppm. Packaged in peelable medical-grade paper-plastic blister pouches, our spinal needles retain full sterility for 5 years.
As healthcare systems adapt to stringent regulatory shifts, such as the European Union’s Medical Device Regulation (EU MDR 2017/745) and US FDA Unique Device Identification (UDI) tracking mandates, international sourcing directors are updating their procurement playbooks. The following trend analysis outlines where global spinal needle manufacturing and procurement are headed over the next decade:
Fine-gauge needles (25G to 27G) offer unmatched PDPH reduction but suffer from structural flexibility when attempting deep tissue localization in obese patients. To overcome this limitation, procurement orders for Co-Axial Spinal Needle Sets (a short 20G/21G introducer paired with a 25G/27G pencil point needle) have grown at a CAGR of 14.2% globally. Buyers are prioritizing manufacturers who offer pre-packaged, validated paired sets within single sterile blister packs.
In high-volume B2B manufacturing, micro-burrs or microscopic metal flash on needle tips can cause localized tissue trauma. Modern procurement protocols now demand factory compliance with 100% automated optical inspection (AOI). High-resolution vision cameras inspect needle points from multiple angles in real-time, instantly rejecting any cannula with bevel misalignment or tip imperfection exceeding 0.005mm.
Healthcare distributors are moving away from middle-tier trading intermediaries, choosing instead to establish direct relationships with OEM/ODM factories in China. Direct factory sourcing provides customizable hub color styling, private label brand printing, localized language IFUs (Instructions for Use), and direct access to legal technical dossiers required by national Ministries of Health (MoH).
Clear, authoritative answers for hospital buyers, medical device importers, and tender consultants.
Whether you are submitting tenders for public hospital supply, developing a private-label anesthesia brand, or scaling regional healthcare distribution, our ISO 13485 certified facility delivers engineered precision, complete regulatory backing, and competitive OEM pricing.
